It is a long time allready since I’ve done this job. But after 22932 hits up to 25-12-20 to this page you deserve more than the text: Yep it is also reasembled again.

So I have to dig into my memory how I did it.

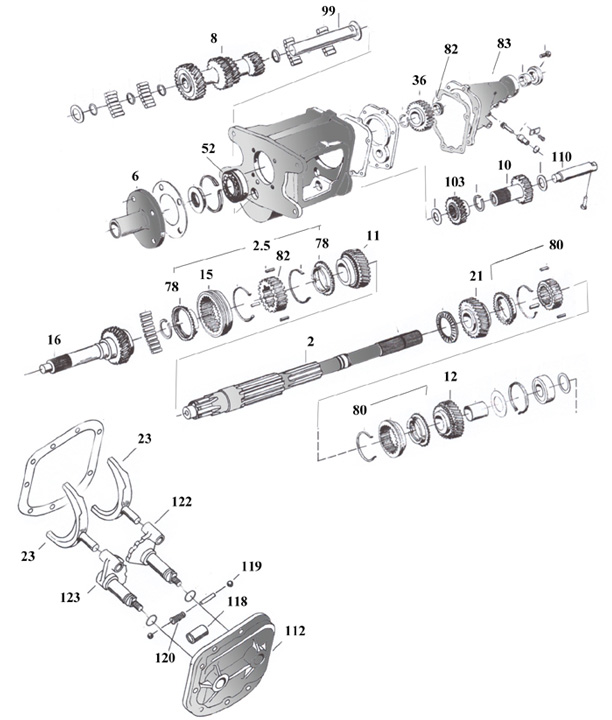

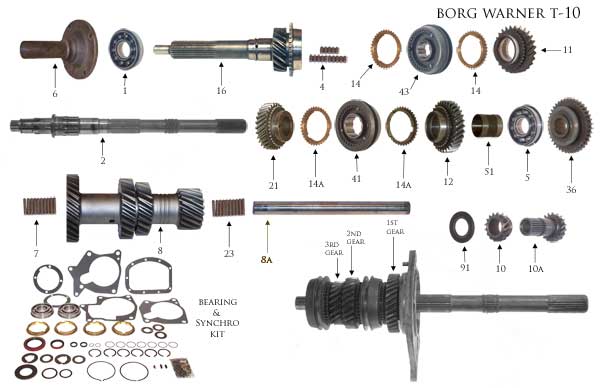

At the end of this article are several diagrams how the transmission is assembled.

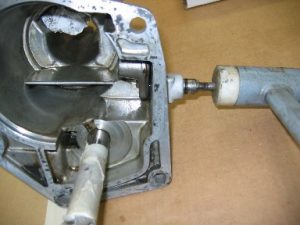

Put on a new O ring onto the reverse shaft. Try to hammer it into the housing without damaging the ring. Grease it before tapping it back into the housing.

01_tap_out_reverse

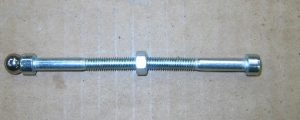

I’ve used this tool to put back the locking balls of the gear selection system. By this system you cannot select f.i. gear 1 and 3 silultaneously.

If one gear is engaged, it will mechanicall block the movement of the other one.

02_ball_retainer_tool

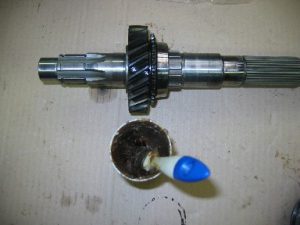

The gears are lubricated a bit to make them slide easier. It is also used to keep the keys in place.

03_1st_gear

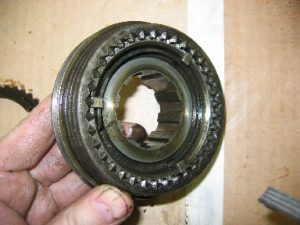

04_shift_assy

05_shift_assy

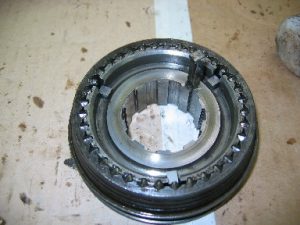

06_shift_assy_key

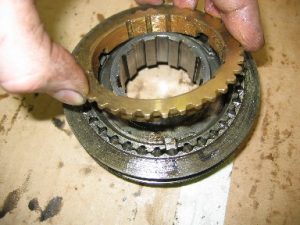

07_synchro_ring

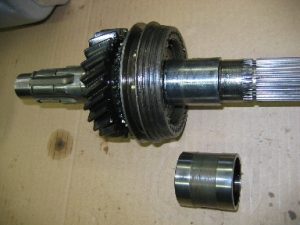

08_4th_shifter

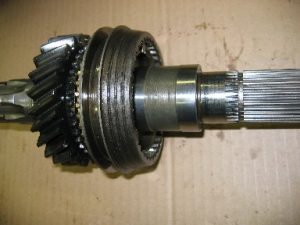

09_4th_shifter

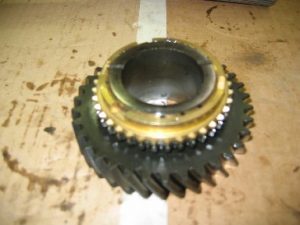

10_2nd_gear_synchro

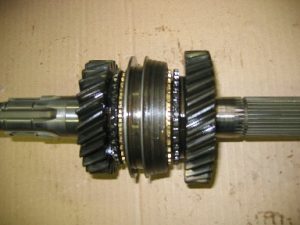

11_2nd_1st_assy

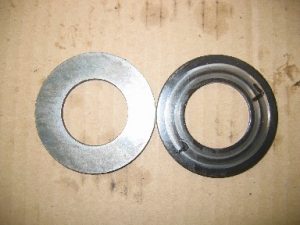

Below is the new thrust washer and the old one

12_thrust_washers

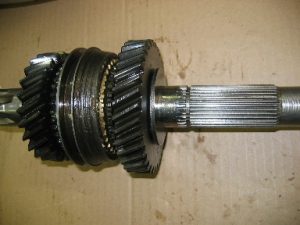

13_2nd_1st_thrust

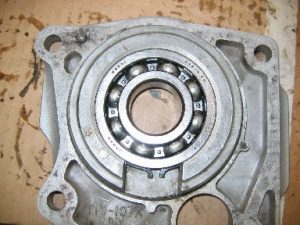

The new bearing is installed using the hydraulic press. The retaining clip snags in place when done right.

14_bearing_assembled

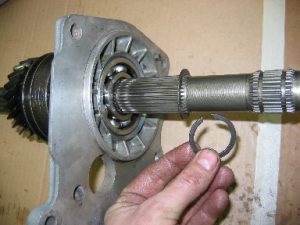

Insert the main shaft and place the lock ring.

15_bearing_ring_clip

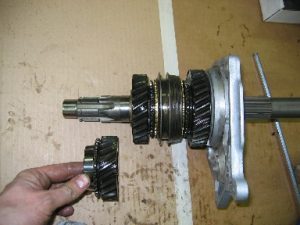

Place the previous assembly onto the shaft.

16_2nd_gear

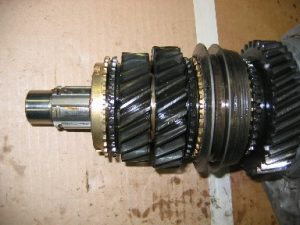

17_2nd_synchro

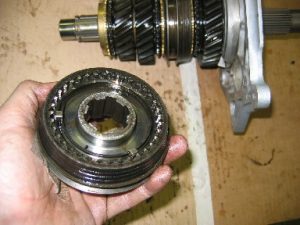

18_shifter_3-4

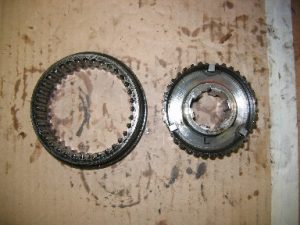

19_shifter_assy

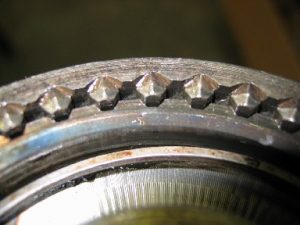

20_shifter_toothing

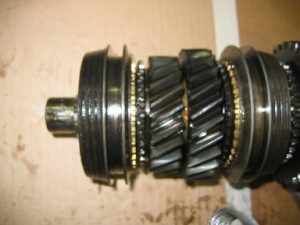

21_mainshaft_assembled

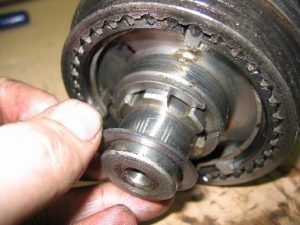

22_bearing_ring

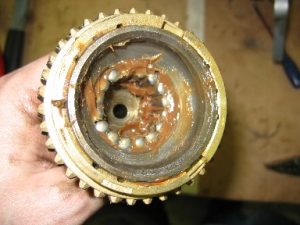

23_4th_gear_needles

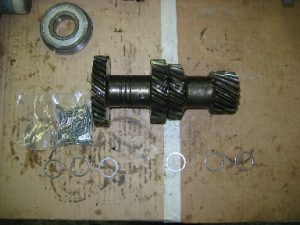

24_countergear

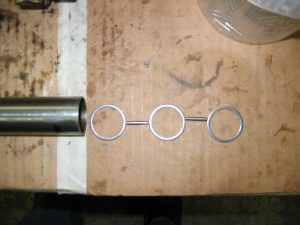

25_countergear

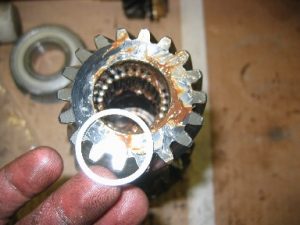

26_needles_inserted

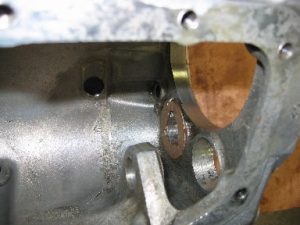

27_shimm_placement

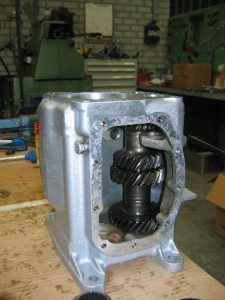

28_countergear_installation

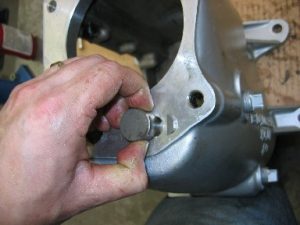

29_woodruff_key

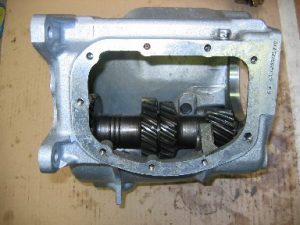

30_result_countergear

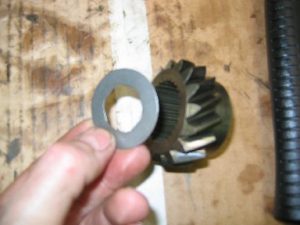

31_reverse_washer_and_gear

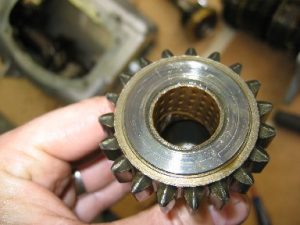

32_reverse_gear

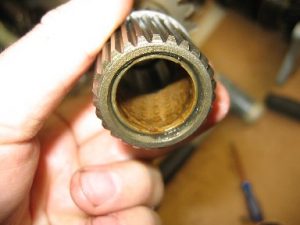

33_reverse_gear_bearing

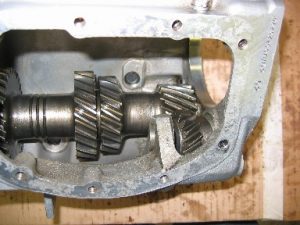

34_iside_reverse_gear_placed

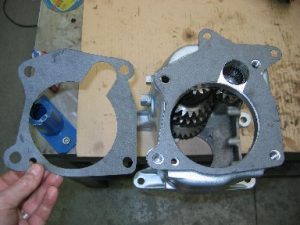

35_gasket_selection

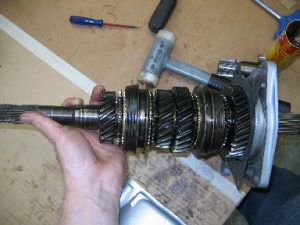

36_mainshaft_completed

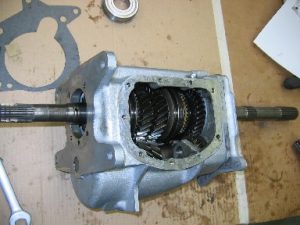

37_mainshaft_installed

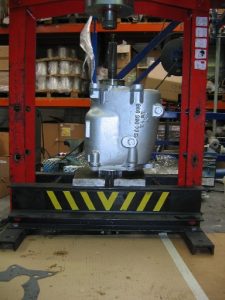

To put on the subborn bearing, the press is used again.

38_clutch_side_bearing

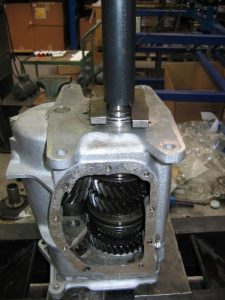

To protect the bearing I used a tube and 2 plates. to spread the pressure in the inner and outer bearing ring.

39_clutch_side_bearing

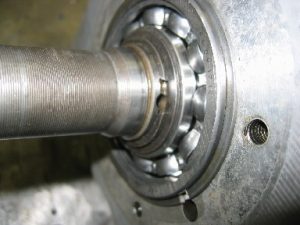

40_bearing_installed

The snapring is now slush with the housing.

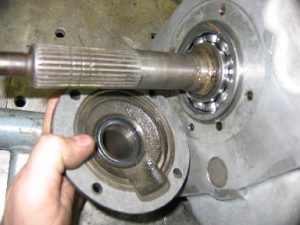

41_cover_plate

The bearing cover fits only one way.there is a square area, which must be positioned onto the oil return hole of the housing

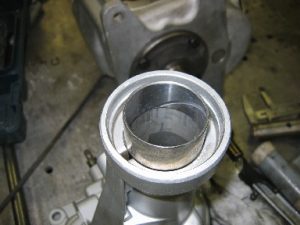

42_rear_end_bearing

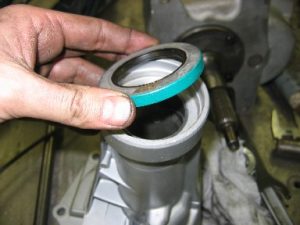

43_rear_end_seal

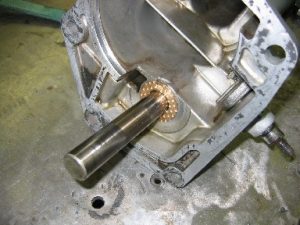

44_washer_extension_housing

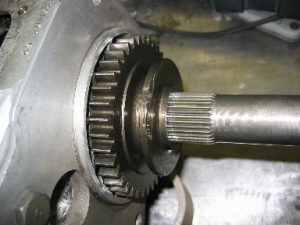

45_reverse_gear

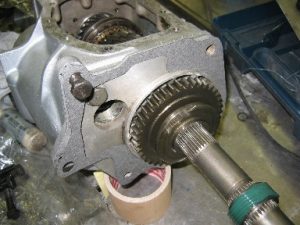

46_odometer_gear_gasket

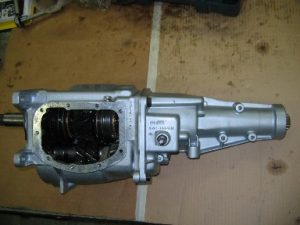

47_extension_housing_assembled

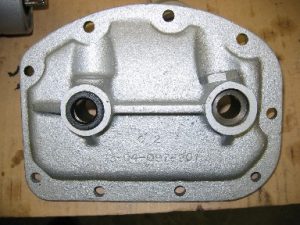

48_seal_side_cover

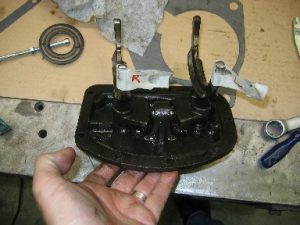

49_shifterforks

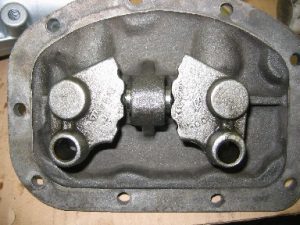

50_shift_locking

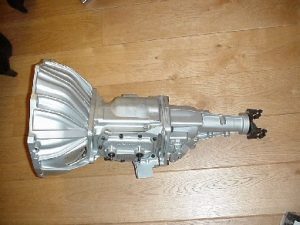

51_complete_transmission

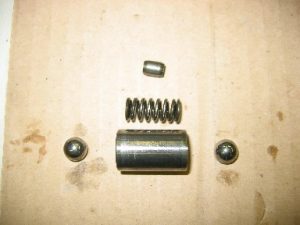

51_shift_locking
